2pipes / 4pipes Chilled Water Exposed/Cassette/Wall Mounted Fan Coil Unit
Time : Apr 25 2026
2pipes / 4pipes Chilled Water Exposed/Cassette/Wall Mounted Fan Coil Unit

Chilled Water Fan Coil Unit

Air Flow 340 m3/h ~ 6800 m3/h


Specification
Coil: high efficiency heat transfer performance
Coils shall be manufactured by Φ9.25mm cooper tubes and sine-wave hydrophilic aluminum fins. Copper tubes are mechanically expanded to bond with aluminum fins. Considering water flow configuration and the performance of heat transfer, headers shall be fabricated of brass material.
2pipes-4pipes-Chilled-Water-Exposed-Cassette-Wall-Mounted-Fan-Coil-Unit
2pipes-4pipes-Chilled-Water-Exposed-Cassette-Wall-Mounted-Fan-Coil-Unit
Casing: reliable structure and elegant design
Casing shall be constructed by extruded galvanize steel panel (class 1), fitting for sturdy command.

Drain pan: special design for no leakage
Condensate drain pans shall be fabricated by high quality panel with punch forming and hot-dip baking paint treated. PE insulation with thickness of 7 mm is designed to tightly bond with drain pan with the benefit of easy manufacturing, anti-leakage and elegant feature eventually extending the drain pan life.
2pipes-4pipes-Chilled-Water-Exposed-Cassette-Wall-Mounted-Fan-Coil-Unit
2pipes-4pipes-Chilled-Water-Exposed-Cassette-Wall-Mounted-Fan-Coil-Unit
Motor: high efficiency and low power consumption
Motors shall consist of low noise permanent capacitor motors and total hermitic rolling bearing with permanent lubricated. The base of motor shall be isolated by rubber mount to minimize the vibration and operation noise.

Fans: low acoustic level
Fans shall be equipped with efficient, low noise, multi-blade centrifugal fan with oversized fan wheel, and shall be manufactured with galvanized steel panel for well dynamic balance performance.
2pipes-4pipes-Chilled-Water-Exposed-Cassette-Wall-Mounted-Fan-Coil-Unit
2pipes-4pipes-Chilled-Water-Exposed-Cassette-Wall-Mounted-Fan-Coil-Unit


Controller: facile and comfortable
Controller shall be facile with changeable speed of fans and friendly interface for users. AMT801 controller is used as optional allowing users to select operating mode and fan speed manually, to set the temperature by using the knob. Or AMT806 Series Thermostats is advanced control as optional using digital LCD display and EL Backlight, allowing users: to detect the room temperature with NTC sensor and compares it with the set-point for automatically keeping the room temperature stable; to adjust automatically 3-speed of fan; to save data and memory with output reliable by relay.

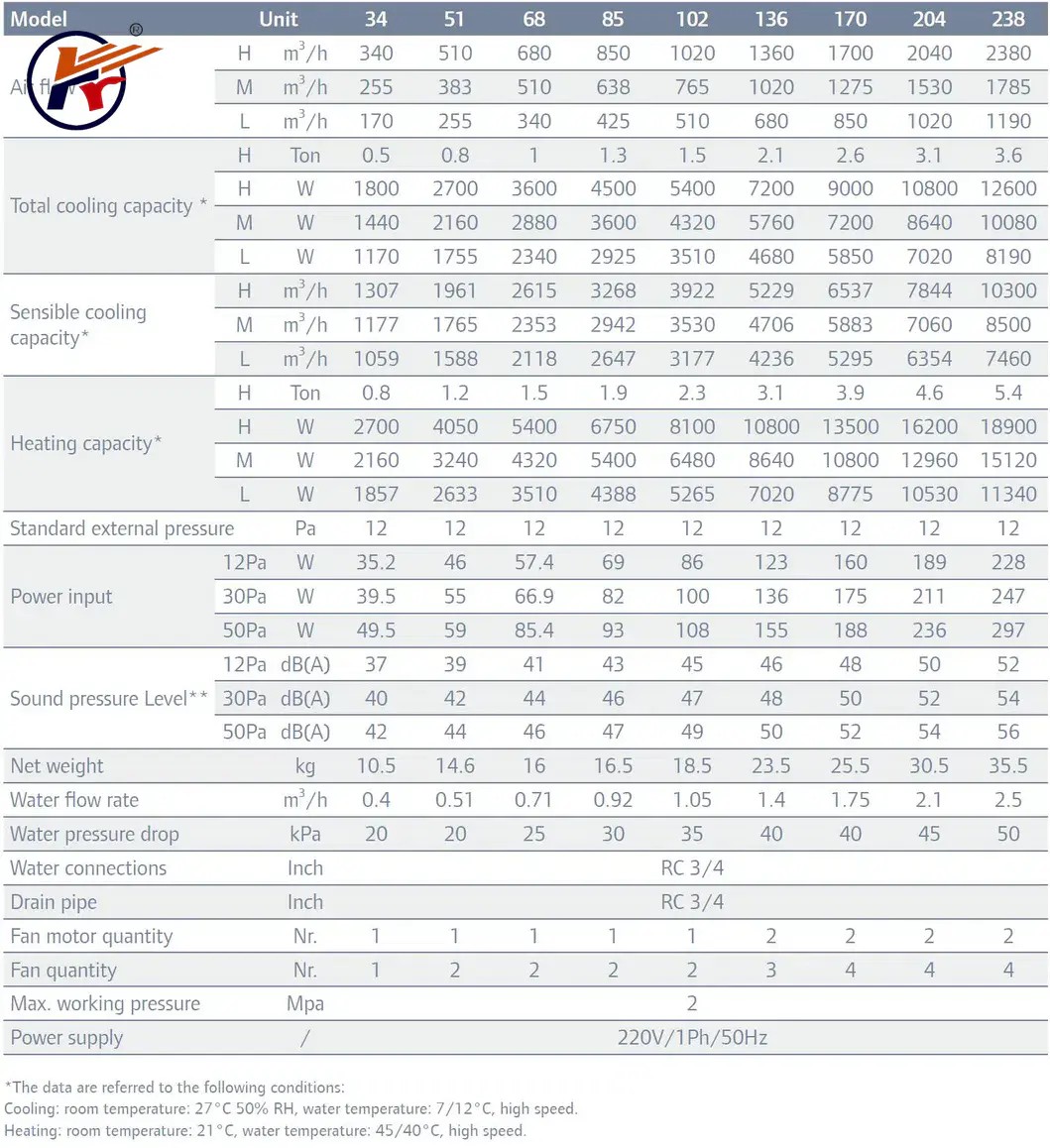

Technical Data
2pipes-4pipes-Chilled-Water-Exposed-Cassette-Wall-Mounted-Fan-Coil-UnitIf you want more sizes, please contact us for details
