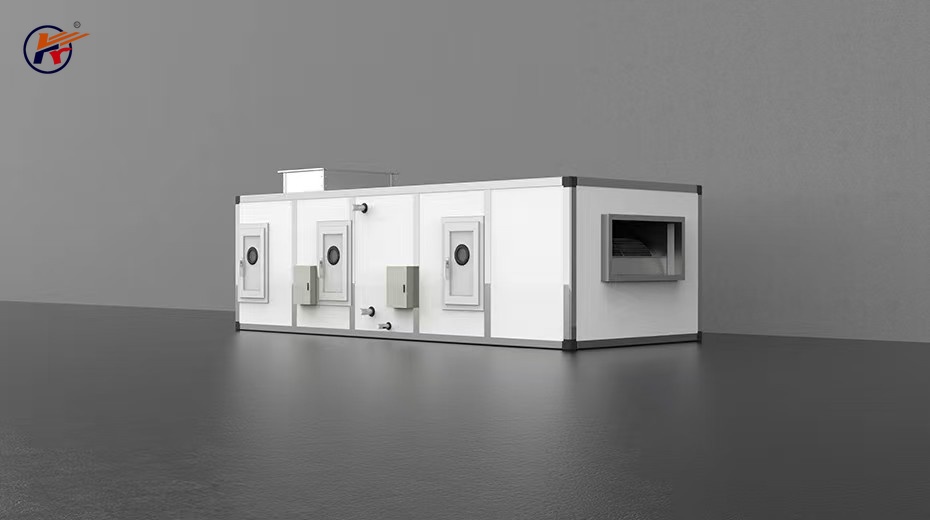

High Performance Clean Room (DX) Air Handling Unit Air Conditioner for Laboratory
Time : Apr 27 2026
High Performance Clean Room (DX) Air Handling Unit Air Conditioner for Laboratory

Product Description

Product Description
Large Hospital AHU System with Multi-Zone Control for Operating Rooms, Labs and ICU Facilities
Stable Temperature & Humidity • Multi-Stage Filtration • Energy Saving
Our medical-grade Air Handling Units are designed for operating rooms, ICU, isolation wards, laboratories, and hospital cleanrooms. The system features multi-stage filtration, pressure control, and precise temperature and humidity regulation to meet international healthcare standards.
·HEPA H13/H14 filtration for sterile environments
·Chilled water cooling coil & accurate control
·Optional positive and negative pressure modes
·Double-skin insulated panel structure
·Low-noise EC or AC fans
·Stainless steel drain pans with anti-bacterial design
Specification
High-Performance-Clean-Room-DX-Air-Handling-Unit-Air-Conditioner-for-Laboratory
High-Performance-Clean-Room-DX-Air-Handling-Unit-Air-Conditioner-for-Laboratory
High-Performance-Clean-Room-DX-Air-Handling-Unit-Air-Conditioner-for-Laboratory
High-Performance-Clean-Room-DX-Air-Handling-Unit-Air-Conditioner-for-Laboratory
Technical Specifications
(Custom configurations available upon request.)
Item
Specification
Airflow
1,000–50,000 m³/h (customized)
Cooling Type
DX Direct Expansion
Filtration
G4 + F7 + H13/H14 (optional)
External Pressure
200–800 Pa (customized)
Noise Level
≤70 dB(A)
Coil Material
Copper tube + aluminum fin / epoxy coated
Panel Structure
Double-skin panel, PU 50 mm
Fan Type
EC / AC centrifugal fan
Power Supply
380V/50Hz / customized
Control System
Temperature, humidity, differential pressure optional
Cooling Coil Capacity Test Conditions
DB 34°C/ WB28°C
Heat Exchanger Heat Testing Conditions
DB 7°C / RH40%
Control cabinet
PLC Control cabinet

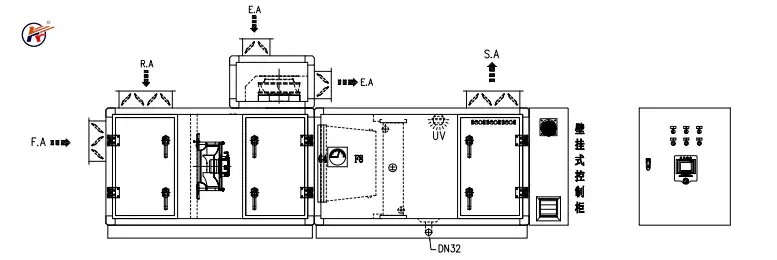

Drawings & Dimensions
Detailed CAD drawings and dimensional layouts are available on request. Our engineering team supports fully customized designs to meet specific cleanroom project requirements.
High-Performance-Clean-Room-DX-Air-Handling-Unit-Air-Conditioner-for-Laboratory
After Sales Service
After-Sales Service Guarantee
12–24 months warranty
Online commissioning support
CAD drawings & wiring diagrams
Video guidance for installation
Rapid spare parts supply
FAQ
Q: What’s the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
