Industrial Chiller Ductless Air Over a Long Distance Air Conditioner Remote Jet Type Fresh Clean Room Fan Coil Unit
Time : Apr 27 2026
Industrial Chiller Ductless Air Over a Long Distance Air Conditioner Remote Jet Type Fresh Clean Room Fan Coil Unit

Product Description

The unit has the functions of cooling and heating, and can achieve direct air supply over a long distance without ducts. It has the characteristics of saving space, greatly reducing one-time investment, and low operating costs. The unit adopts a spherical nozzle with superior performance as the air outlet, and the air supply angle can be adjusted manually within 60 degrees or using the controller, so that cold and hot air can reach the required position, creating a comfortable air-conditioning environment. The outlet direction of the spherical tuyere can be horizontal air supply or vertical downward air supply.

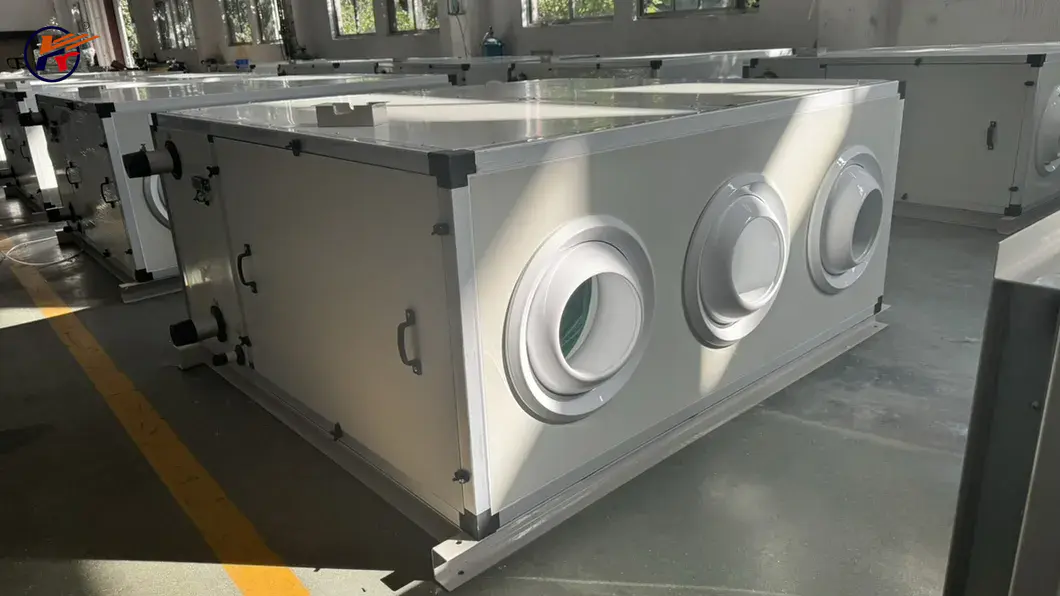

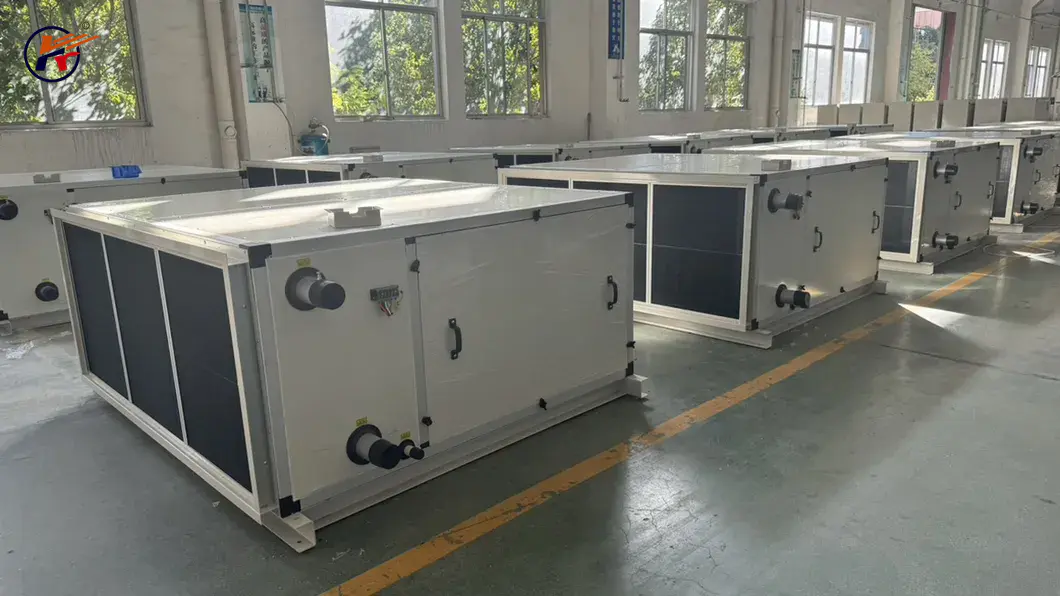

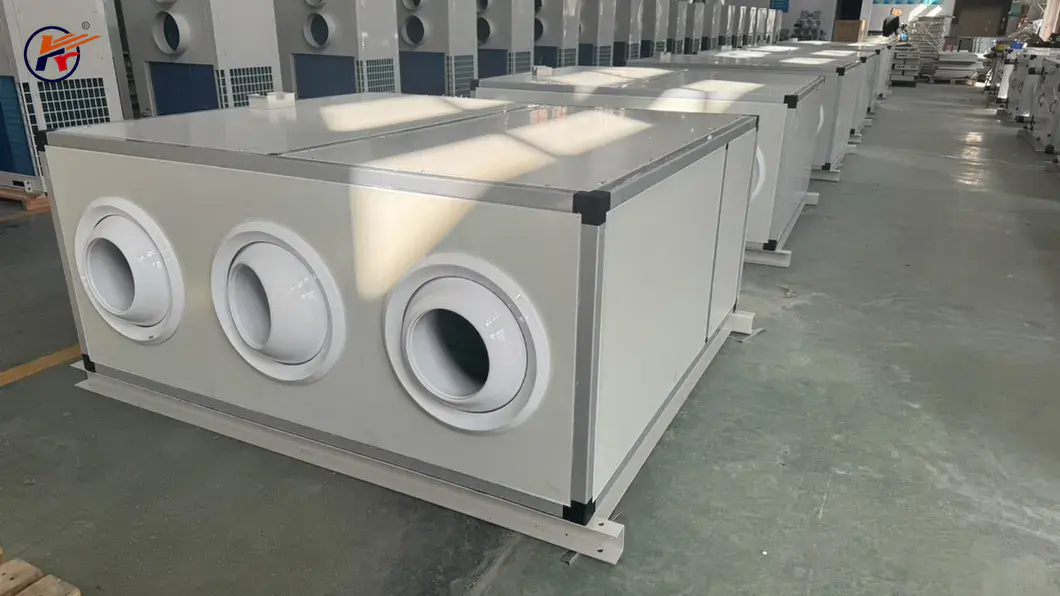

Detailed Photos

Industrial Chiller Ductless Air Over a Long Distance Air Conditioner Remote Jet Type Fresh Clean Room Fan Coil Unit

Industrial Chiller Ductless Air Over a Long Distance Air Conditioner Remote Jet Type Fresh Clean Room Fan Coil Unit
Industrial Chiller Ductless Air Over a Long Distance Air Conditioner Remote Jet Type Fresh Clean Room Fan Coil Unit
Product Parameters
Indoor unit modelHASC2-200HHASC2-300H
Nominal cooling
capacity		(kW)2030
Nominal heating
capacity		(kW)2131.5
Energy regulation range100-0
Nominal cooling
operating power		(kW)7.210.6
Nominal heating
operating power		(kW)6.910.1
Indoor unit operating power(kW)1.12.2
Maximum power of
auxiliary electric
heating(optional)		(kW)17.724.7
Supply power380V 3N~50Hz
Air filterGN primary filter
Air supplyair supply flow
rate(m3/h)		42006400
static pressure 1(Pa)100100
static pressure 2(Pa)150/
static pressure 3(Pa)200300
FantypeExternal rotor centrifugal fan
quantity21
Auxiliary electric
heating (optional)		heater typePTC ceramic
power(kW)912
Evaporator
parameters		copper tube typeInside threaded pipeSleek tube
fin typeHydrophilic membrane window openings
Throttling methodThermal expansion valve
Connection methodThreadWelding

liquid tube
diameter(in)		φ1/2φ5/8

Piping size		air tube diameter(in)φ3/4φ1- 1/8
condensate
drainage pipe		DN20
Indoor unit
diamension		length(mm)14801780
width(mm)820980
high(mm)550550
weight(kg)130260
noise(dB)A6668
Note:
1.Rated cooling capacity test conditions: outdoor dry bulb/wet bulb 35°C/24°C, indoor
dry bulb/wet bulb 27°C/ 19°C
2.Rated heat production test conditions: outdoor dry bulb/wet bulb 7°C/6°C, indoor
dry bulb 20°C
3.For heating at ambient temperatures below 0°C, electric heating is recommended.

4.The static pressure of the unit in the fan characteristics is selected as an integer
multiple of 50 between 1 and 3 for the given static pressure.
Packaging & Shipping

Industrial Chiller Ductless Air Over a Long Distance Air Conditioner Remote Jet Type Fresh Clean Room Fan Coil Unit
