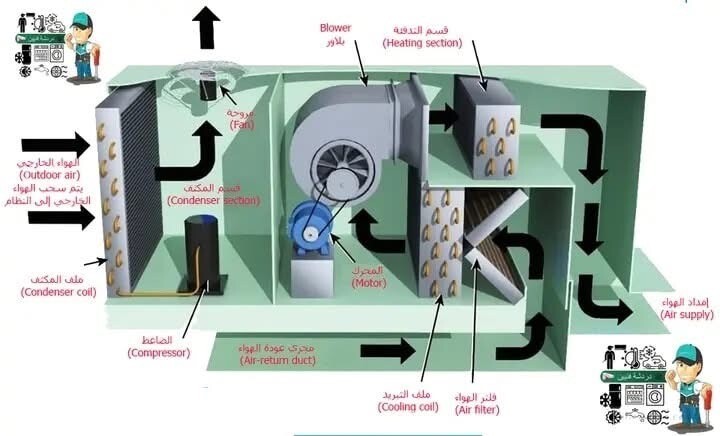

Components of an Air Handling Unit (AHU)

An Air Handling Unit (AHU) is a key component of central ventilation and air conditioning systems. It treats and distributes air in a controlled manner to ensure thermal comfort and high indoor air quality, especially in environments that require clean air, such as hospitals, factories, and cleanrooms. Below is a detailed breakdown of the unit’s components and their functions:

1. Fresh Air Intake
   Description: Outside air is drawn from the environment to supply fresh air into the system.
   Function: Ensures the introduction of fresh air to improve indoor air quality and compensate for air losses due to exhaust.

2. Return Air from Cleanroom
   Description: Used air returned from the cleanroom.
   Function: Recycles air to reduce energy consumption by mixing it with fresh air.

3. Mixing Section
   Description: The area where fresh air and return air are blended.
   Function: Enhances energy efficiency by utilizing a mixture of recycled and fresh air.

4. Pre-filter
   Description: The first stage of air purification.
   Function: Removes impurities and large particles from the air before it enters subsequent treatment stages.

5. Preheat Coil
   Description: A heating coil placed in the early stage of the unit.
   Function: Raises the temperature of incoming air in cold weather to prevent condensation or freezing in later stages.

6. Bag Filter
   Description: An additional filter consisting of long bags to capture fine particles.
   Function: Ensures removal of particles not filtered in the first stage.

7. Fan
   Description: A device that drives air through the unit.
   Function: Ensures efficient air distribution through all stages and into the rooms.

8. Cooling Coil
   Description: A coil containing coolant to lower air temperature.
   Function: Cools the air to maintain thermal comfort in the target area.

9. Reheat Coil
   Description: A heating coil placed after the cooling stage.
   Function: Adjusts air temperature if overcooling occurs, ensuring comfort or meeting specific operational requirements.

10. Supply Air to Cleanroom
    Description: Air that has been fully treated and delivered to the target room.
    Function: Provides clean air at appropriate temperature and humidity levels to maintain a healthy and suitable environment.

Conclusion
The Air Handling Unit (AHU) is an integrated system where air undergoes multiple stages of purification, heating, cooling, and mixing to ensure quality and comfort. The coordinated operation of its components helps meet diverse environmental needs while improving efficiency and reducing energy consumption.
