Cassette-Type 4-Way Fan Coil Units: A Comprehensive Overview
Time : Nov 12, 2025

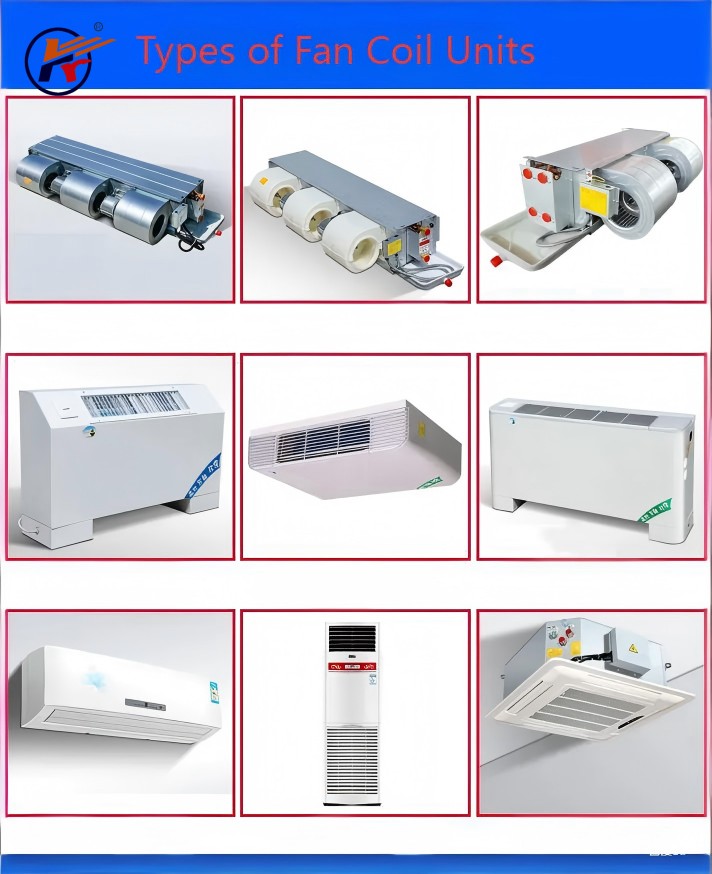

Cassette-Type 4-Way Fan Coil Units (FCUs) are advanced terminal equipment for central air-conditioning systems, widely recognized for their space-saving design and uniform air distribution. Unlike traditional vertical or wall-mounted FCUs, these units feature a low-profile cassette structure that fits seamlessly into suspended ceilings, making them ideal for spaces where floor or wall space is limited and aesthetic consistency is a priority.
At the core of their design lies the “4-way air supply” mechanism—air is discharged evenly from four directions (front, rear, left, and right) through adjustable air grilles, eliminating localized temperature variations and ensuring consistent comfort across the entire room. This unique airflow pattern sets them apart from single or double-way FCUs, making them particularly suitable for large open areas such as office lobbies, conference rooms, hotel ballrooms, and retail stores.
Structurally, these units consist of high-efficiency heat exchange coils (typically made of seamless copper tubes with aluminum fins), a quiet centrifugal fan, an integrated condensate pan, and intelligent control components. The heat exchange coils adopt a hydraulic expansion process to ensure zero-gap contact between fins and tubes, maximizing heat transfer efficiency and reducing energy consumption. The centrifugal fan, paired with a high-performance motor, operates at a noise level as low as 38–45 dB(A), far below industry averages, ensuring a quiet indoor environment.
In terms of performance, Cassette-Type 4-Way FCUs offer flexible specifications to meet diverse needs: air volume ranges from 800 to 6,000 m³/h, cooling capacity spans 2.5 to 18 kW, and heating capacity (when paired with hot water systems) reaches 3 to 20 kW. They support multi-speed airflow adjustment (low, medium, high) and precise temperature control (±0.5℃) via wall-mounted thermostats or smart building management systems. Additionally, most models are equipped with anti-condensation and water leakage protection devices, enhancing operational safety.
Installation and maintenance are streamlined by their modular design. The ceiling-mounted structure requires minimal on-site modification, and the detachable air grilles and access panels allow easy access to internal components for cleaning or repairs. Environmentally, these units comply with global energy efficiency standards (such as EN 14511 and ASHRAE 90.1) and can be paired with eco-friendly refrigerants, aligning with modern sustainability goals.
Overall, Cassette-Type 4-Way Fan Coil Units balance functionality, aesthetics, and efficiency, making them a top choice for commercial and high-end residential air-conditioning projects worldwide.
