What is a Fan Coil Unit (FCU)?

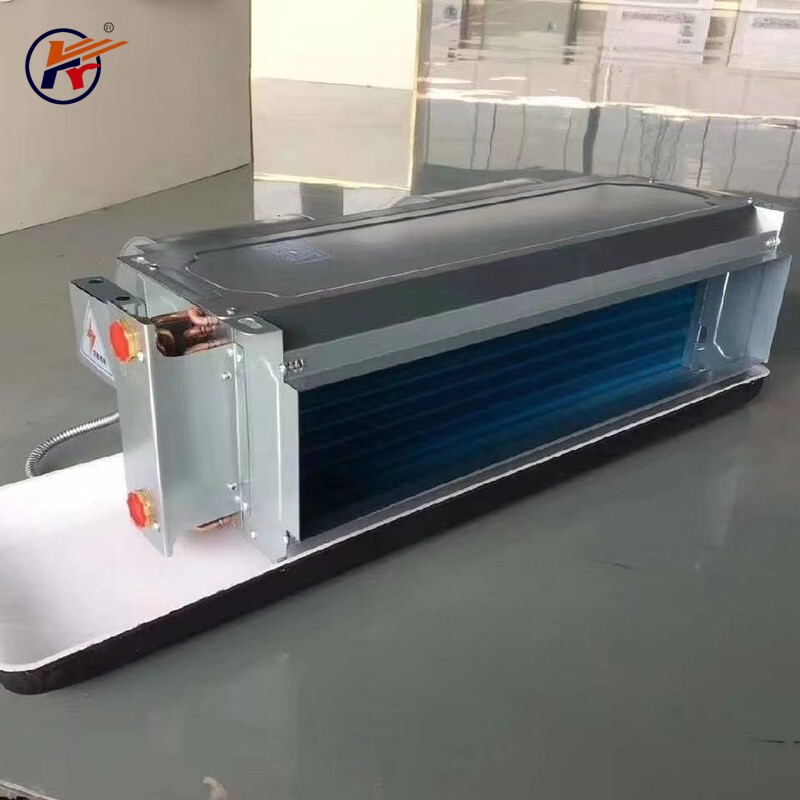

A Fan Coil Unit (FCU) is a compact, versatile terminal device used in heating, ventilation, and air conditioning (HVAC) systems to provide localized air conditioning and climate control within individual rooms or specific zones. It operates by circulating air from the space over a coil—which is supplied with either hot or cold water from a central plant (like a boiler and chiller)—and then delivering the conditioned air back into the room.

This design makes FCUs a cornerstone of flexible, energy-efficient zoned comfort systems in a wide range of buildings.

Core Purpose & Function: Localized Zone Control

The primary purpose of an FCU is to allow for independent temperature control in different spaces (e.g., individual hotel rooms, office suites, or apartments). Unlike centralized air handlers that condition air for an entire floor or building at once, each FCU can be controlled separately by its own thermostat. This means one room can be cooled while another is heated, matching diverse occupant preferences and varying solar heat gains, which ultimately enhances comfort and reduces energy waste.

Key Components & How It Works:

A standard FCU consists of a few essential components housed in a cabinet:

1. Fan (Blower): Draws room air (return air) into the unit.

2. Coil(s): A heat exchanger connected to pipes carrying hot or chilled water. The air passes over the coil, transferring heat to or from the water.

3. Air Filter: Captures dust and particulates from the recirculated air.

4. Drip Pan & Drain: Removes condensate produced when cooling moist air.

5. Local Control System: Often includes a thermostat and speed selector for the fan.

Operating Cycle:

• The fan draws warm room air through the filter.

• This air is forced across the chilled or hot water coil, where it releases or absorbs heat.

• The now-conditioned air is discharged back into the room through supply outlets.

• The water, having absorbed or released heat, returns to the central plant to be re-cooled or re-heated.

Common Applications of Fan Coil Units:

• Hospitality: Hotels, motels, and resorts (perfect for individual room control).

• Multi-Family Residential: Apartment buildings and condominiums.

• Commercial Offices: Especially buildings with multiple tenants or varied occupancy schedules.

• Healthcare: Patient rooms and administrative areas.

• Modern Retrofit Projects: Where extending ductwork from a central system is impractical.

Major Advantages of FCU Systems:

• Individual Zone Control: Maximizes occupant comfort and flexibility.

• Energy Efficiency: Saves energy by conditioning only occupied spaces as needed, avoiding the waste of conditioning an entire building uniformly.

• Space-Saving Design: FCUs are typically installed above ceilings (horizontal units) or along walls (vertical units), requiring less mechanical room space than large ducted systems.

• Relatively Low Maintenance: Maintenance primarily involves regular filter changes and coil cleaning.

• Quiet Operation: Modern units are designed for low sound levels, ideal for bedrooms and offices.

Choosing the Right FCU: Key Considerations
Selecting a fan coil unit involves evaluating:

• Capacity (BTU/h): Matching the cooling/heating load of the space.

• Configuration: Horizontal (ceiling-concealed), vertical (floor-mounted), or exposed cabinet type.

• Airflow & Static Pressure: To ensure proper air delivery through connected ductwork, if used.

• Control Options: From basic on/off thermostats to integrated Building Management System (BMS) interfaces.

Conclusion: A Pillar of Modern Zoned HVAC

Fan Coil Units remain one of the most effective and widespread solutions for achieving personalized comfort and operational efficiency in diverse buildings. By providing precise, localized air conditioning, they bridge the gap between central plant efficiency and individual user needs.

Explore Our Range of Efficient FCU Solutions
We offer a comprehensive selection of quiet, high-performance fan coil units for any application. Our technical experts can help you select and configure the ideal model to meet your project's specific requirements for comfort, efficiency, and control.

Contact us today for product specifications, system design support, or to request a quote.
