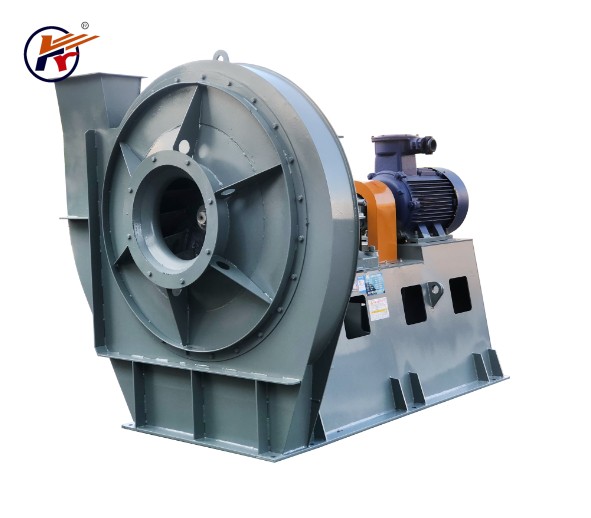

The industrial centrifugal boiler dust removal and cooling fan is a critical piece of equipment in boiler systems, integrating functions of gas pressurization, dust removal, and cooling. Widely used in power generation, chemical engineering, metallurgy, and building materials industries, it ensures safe boiler operation and environmental compliance through features like high-temperature resistance, corrosion resistance, and low noise.

‌1. Core Structure and Working Principle‌

This fan consists of key components: impeller, casing, main shaft, bearings, inlet/outlet boxes, and transmission systems. The impeller, designed with backward-inclined or aerofoil blades, rotates at high speed via an electric motor. Gas enters axially, is accelerated radially by centrifugal force, and exits after pressure conversion in the diffuser. Multi-stage configurations (e.g., 6–8 stages) achieve pressures up to 1.2 MPa, suitable for gas pipeline增压 (pressurization). For instance, a multi-stage high-pressure model can handle 1.2 MPa outlet pressure for demanding applications.

‌2. Performance Features and Classifications‌

• ‌High Efficiency and Energy Saving‌
  Optimized via ANSYS-simulated impeller designs, these fans reduce energy loss by 15–20% compared to traditional models. Variable frequency drives (VFDs) enable 30–110% flow adjustment, adapting to fluctuating boiler loads.

• ‌High-Temperature and Corrosion Resistance‌
  Heavy-duty models use stainless steel or fiberglass-reinforced plastic (FRP) to withstand temperatures up to 480°C and corrosive gases (e.g., SO₂, NOₓ). FRP variants resist pH 2–12 media, ideal for flue gas desulfurization (FGD) systems.

• ‌Low Noise and Stability‌
  Backward-inclined impellers ensure smooth airflow, keeping noise below 85 dB(A) per industrial standards. Suspension bearings minimize friction, extending service life to over 10 years.

• ‌Classifications by Application‌

  • ‌Transpro-Type Fans‌: Compact designs for localized ventilation in workshops.
  • ‌Explosion-Proof Fans‌: Equipped with ATEX-certified motors for hazardous environments (e.g., oil refineries).
  • ‌High-Pressure Centrifugal Fans‌: Handle 300–3,000 Pa pressures for boiler induced draft or oxygen generation.

‌3. Key Technical Specifications‌

‌4. Installation and Maintenance Guidelines‌

• ‌Installation Standards‌

  • Foundation levelness error ≤0.1 mm/m to prevent vibration.
  • Inlet filters must limit dust to ≤100 mg/m³.
  • Coupling alignment error ≤0.05 mm to avoid axial movement.

• ‌Routine Maintenance‌

  • Monitor bearing temperature and vibration hourly; stop immediately if abnormal.
  • Clean impeller dust monthly and replace lithium-based grease.
  • Inspect seals quarterly and replace worn expansion joints.

• ‌Troubleshooting‌

  • ‌Bearing Overheating‌: Check lubricant level and cooling water flow.
  • ‌Low Airflow‌: Clean filters or adjust impeller angles.
  • ‌Abnormal Noise‌: Tighten anchor bolts and verify impeller balance.

‌5. Case Study: Steel Plant Efficiency Upgrade‌

A steel plant replaced Roots blowers with multi-stage centrifugal fans, reducing energy consumption by 18% and saving over $500,000 annually in electricity costs. The VFD-equipped fans improved boiler load response by 30%, while NOₓ emissions dropped to <50 mg/m³, meeting ultra-low emission standards.

‌6. Industry Standards and Certifications‌

Products comply with Chinese standards (JB 8523-1997, JB/T 4358-2008) and international certifications (API 673, AMCA 210). CE-marked models adhere to EN 12198 mechanical safety directives, ensuring global market compatibility.

‌Conclusion‌
Industrial centrifugal boiler fans are indispensable for energy-efficient and eco-friendly boiler operations. Selecting stainless steel, explosion-proof, or high-pressure variants requires matching parameters to specific conditions while adhering to installation and maintenance protocols to maximize lifespan and performance.
