Natural Air Curtain
Natural Air Curtain
The Natural Air Curtain creates a gentle, draft-free barrier between indoor and outdoor environments. Unlike traditional high-speed air curtains, it uses optimized airflow design to reduce noise and energy consumption while still blocking dust, insects, and temperature exchange. Ideal for spaces where comfort and quiet matter.
Email:zkeruiteair@gmail.com
WhatsApp:+8613105346663

product description



What is a Natural Air Curtain?

The Natural Air Curtain is a next-generation air barrier designed to separate two environments without a solid door. It emits a soft, low-turbulence airflow that feels like a natural breeze — not a harsh blast of air. This makes it perfect for retail stores, cafes, lobbies, and even residential entrances where comfort and silence are priorities.

Key Benefits

  • Energy Savings – Reduces heating and cooling loss by up to 30%.

  • Ultra-Quiet Operation – Noise levels as low as 35 dB, ideal for quiet spaces.

  • Draft-Free Comfort – No strong wind feeling; maintains natural comfort.

  • Insect & Dust Blocking – Keeps flying insects and airborne dust outside.

  • Easy Installation – Mounts above doors or windows; plug-and-play ready.

Technical Specifications

  • Airflow speed: 6–10 m/s (adjustable)

  • Noise level: 35–48 dB(A)

  • Power supply: 110V/220V, 50/60Hz

  • Mounting height: up to 3.5 meters

  • Available widths: 600mm, 900mm, 1200mm, 1500mm, 1800mm

Where to Use Natural Air Curtains?

✔ Boutique shops & showrooms
✔ Restaurants & cafés with open doors
✔ Office entrances & lobbies
✔ Hospitals & clinics (quiet zones)
✔ Hotel entrances
✔ Home patios & sunrooms

Why Choose Our Natural Air Curtain?

Unlike standard industrial air curtains that create strong, uncomfortable drafts, our Natural Air Curtain is engineered for human-centric airflow. It effectively separates indoor and outdoor air while maintaining a pleasant environment. Backed by CE, RoHS, and ISO9001 certification.

Model Selection Table

ModelOverall Dimensions(L×W×H) mmVoltage / FrequencyInput Power(W)Air Volume(m³/h)Air Velocity(m/s)NoisedB(A)Net Weight(kg)
FM-1209T/Y900×195×220110V/220V, 50/60Hz160/1101400/11009/115710
FM-1210T/Y1000×195×220110V/220V, 50/60Hz180/1301600/13009/115810.5
FM-1212T/Y1200×195×220110V/220V, 50/60Hz200/1501900/16009/115812
FM-1215T/Y1500×195×220110V/220V, 50/60Hz230/1802500/20009/115913.5
FM-1218T/Y1800×195×220110V/220V, 50/60Hz300/2503200/26009/116017
FM1506600×266×265110V/220V, 50/60Hz150/1151480/126053/50
FM1509900×266×265110V/220V, 50/60Hz200/1702400/204054/51
FM15121200×266×265110V/220V, 50/60Hz335/2953380/287057/53
FM15151500×266×265110V/220V, 50/60Hz360/3304620/393060/56


Product Display

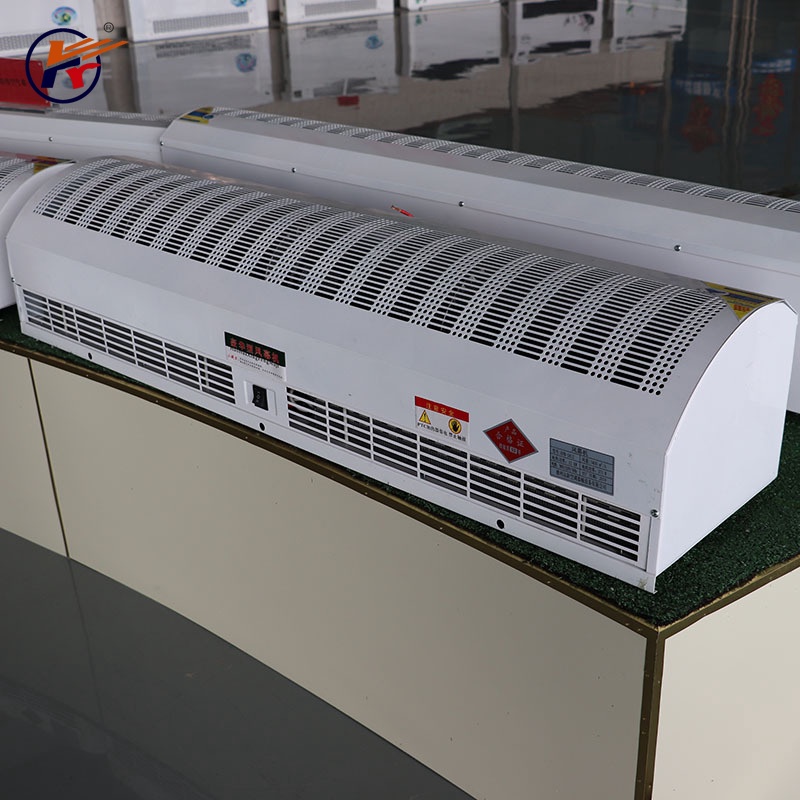

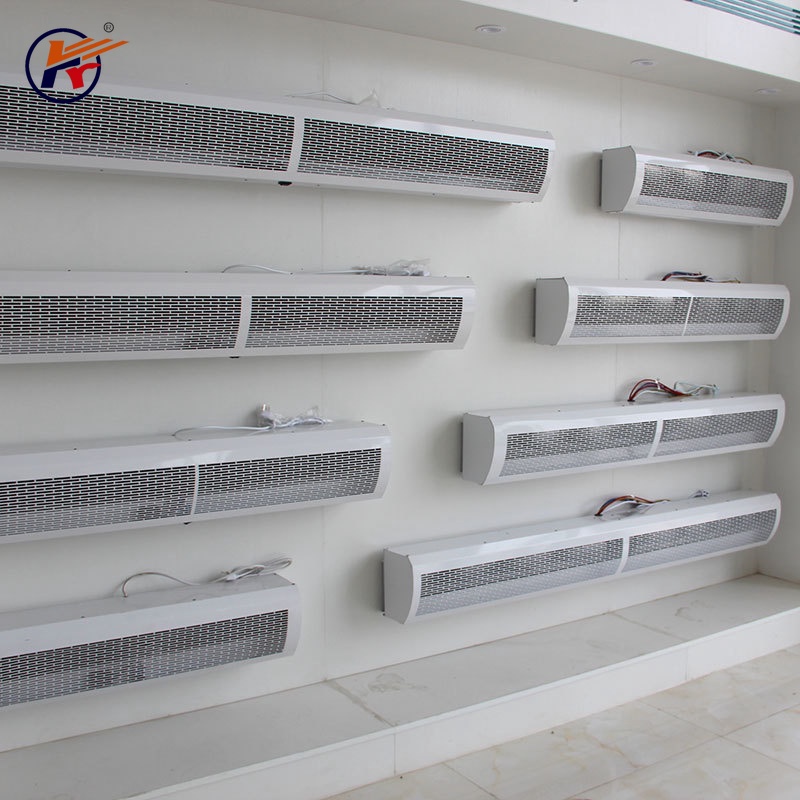

  • Natural Air Curtain
  • Natural Air Curtain
  • Natural Air Curtain
