RM Series Electric Heating Air Curtain
RM Series Electric Heating Air Curtain
The RM Series heated air curtain delivers a powerful high-speed air barrier across doorways, combining natural air ventilation with instant PTC electric heating. It efficiently blocks cold outdoor air from entering, maintains indoor thermal comfort, reduces energy loss, and prevents dust, fumes, and insects. Ideal for commercial entrances, industrial doorways, and cold-climate buildings.
Email:zkeruiteair@gmail.com
WhatsApp:+8613105346663

product description



RM Series Electric Heating Air Curtain (PTC Heating Type)


  • Product Name: RM Series Electric Heating Air Curtain / PTC Heated Air Curtain
  • Application: For doorways with height ≤ 3m (shops, restaurants, hotels, warehouses, cold zones). Blocks cold air infiltration, retains indoor heat, dust & insect proof.
  • Heating Element: PTC ceramic heater (safe, auto power regulation, energy-efficient, long life)
  • Control: 2-speed / 3-speed switch, optional remote control (RC)
  • Mounting: Top-mounted (ceiling/door lintel)

Selection Parameter Table (RM Electric Heating Series)

ModelDimensions(L×W×H, mm)Voltage /FrequencyMotor Power(W)PTC HeatingPower (kW)Air Volume(m³/h)Air Speed(m/s)Noise(dB(A))Net Wt.(kg)
RM-1209T/Y900×200×230220V~ 50/60Hz160/1103/61400/11009/115712
RM-1212T/Y1200×200×230220V~ 50/60Hz200/1504/81900/16009/115814
RM-1215T/Y1500×200×230220V~ 50/60Hz230/1805/102500/20009/115916
RM-1218T/Y1800×200×230220V~ 50/60Hz300/2506/123200/26009/116019
RM-1509D/Y900×270×270380V~ 50Hz200/1706/122400/204010/125818
RM-1515D/Y1500×270×270380V~ 50Hz360/33010/144620/393010/126024

Key Notes

  • Model Meaning:
    • RM = Electric Heating Series
    • 12/15 = impeller diameter (120mm / 150mm)
    • 09/12/15/18 = length (900/1200/1500/1800mm)
    • T/Y = top mount; D/Y = dual speed / heavy duty
  • Power: Two values = High / Low speed; Heating: 2-stage (half/full power)
  • Installation Height: ≤ 3m (standard); ≤ 2.5m recommended for cold regions
  • Protection: Overheat auto cut-off, fan delay cooling


Product Display



  • RM Series Electric Heating Air Curtain
  • RM Series Electric Heating Air Curtain

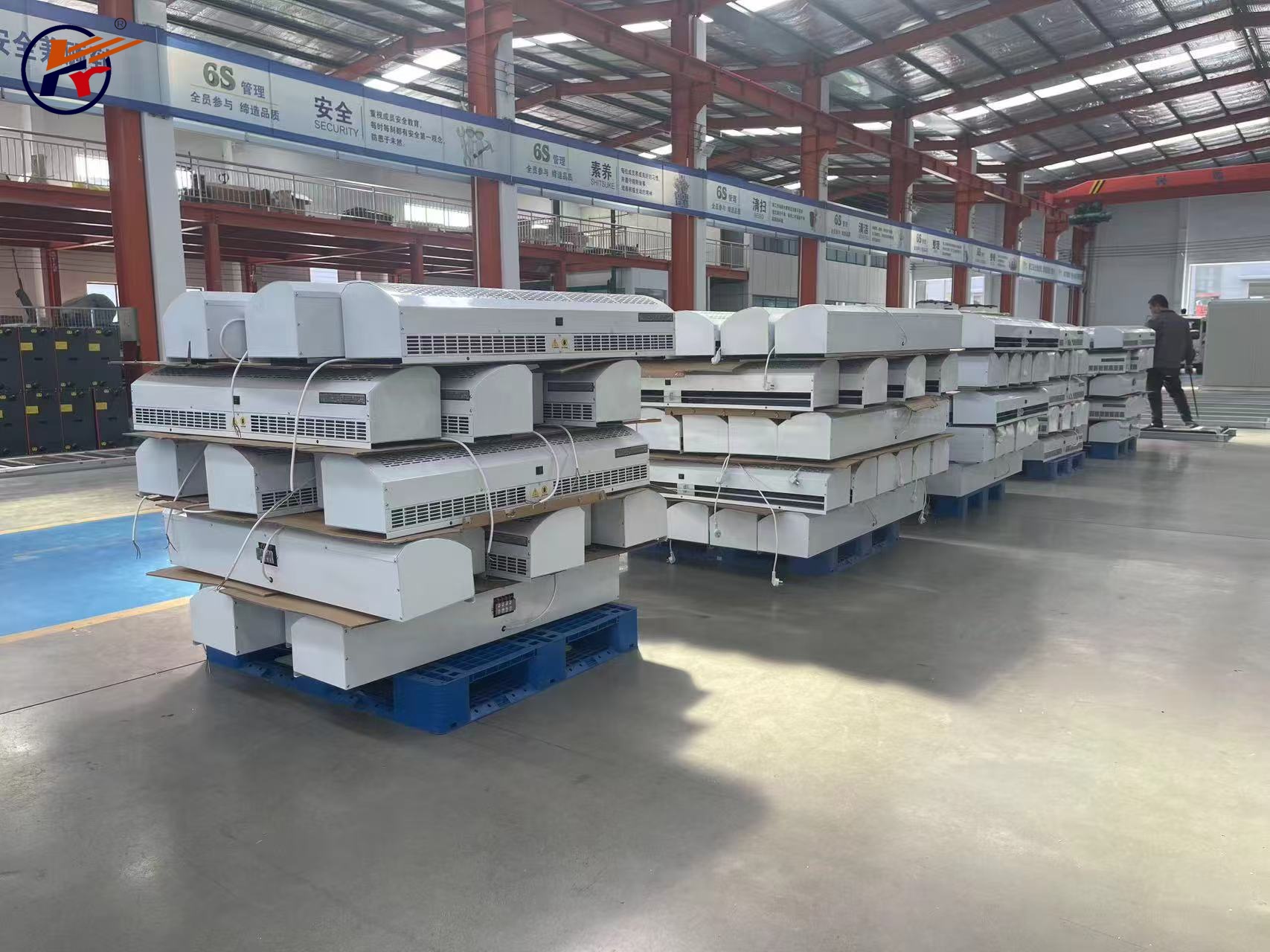

Factory Display
