Product

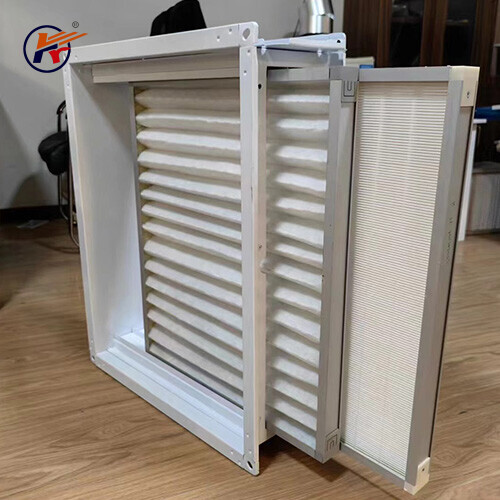

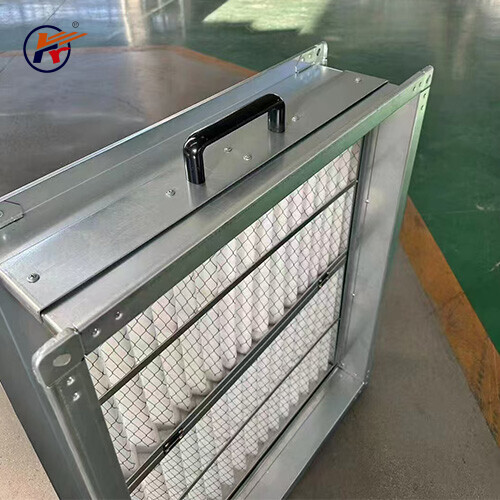

High efficiency air filtration and purification unit with three filtration stages:

G4 (ZLM) pre-filter according to EN779 standard

-F7 intermediate filter according to EN779 standard

- H14 absolute filter with 99.995%efficiency according to EN1822 standard and

sealed with polyurethane for 100% air filtration

. The continuous recirculation of the indoor air through the three filtration stages guaran-

tees the purification of the air by eliminating partidles and pollutants such as: dust, po-

llen, spores, bacteria, viruses and fine particles PM10, PM2.5 and PM1.Upon request,

it can incorporate an activated carbon filter to eliminate gases and odours.

Structure with soundproofed aluminum profile with galvanized steel sandwich panels

with 25mm of fiberglass acoustic insulation and sound attenuator at the fan inlet that

absorbs 55% of the noise according to EN12086 standard. Easy access service panel

far filter replacement

Backward blade fan with high efficiency and very low consumption external rotor EC

mator, electronically adjustable 0-100%via 0-10V

*Mural regulator with ON / OFF switch, potentiometer for gradual stepless regulation

of the air flow 0-100% and visual indicator for dirty filter alarm by differential pressure

switch.

*Prepared for installation in ducts inside the false ceiling.
