Applications of 9-19/9-29 Centrifugal Fans
Time : 06/11/2025
1. Overview
The 9-19 and 9-29 series centrifugal fans are high-pressure, high-efficiency industrial ventilation devices widely used in various industrial and commercial fields. Designed with advanced aerodynamic principles, these fans feature a compact structure, stable operation, and strong air supply capacity, making them ideal for scenarios requiring high static pressure and medium-to-high air volume.
Both series share core design concepts but differ slightly in performance parameters: the 9-19 series is typically optimized for higher static pressure applications, while the 9-29 series balances pressure and air volume, offering broader adaptability for general high-pressure ventilation needs.

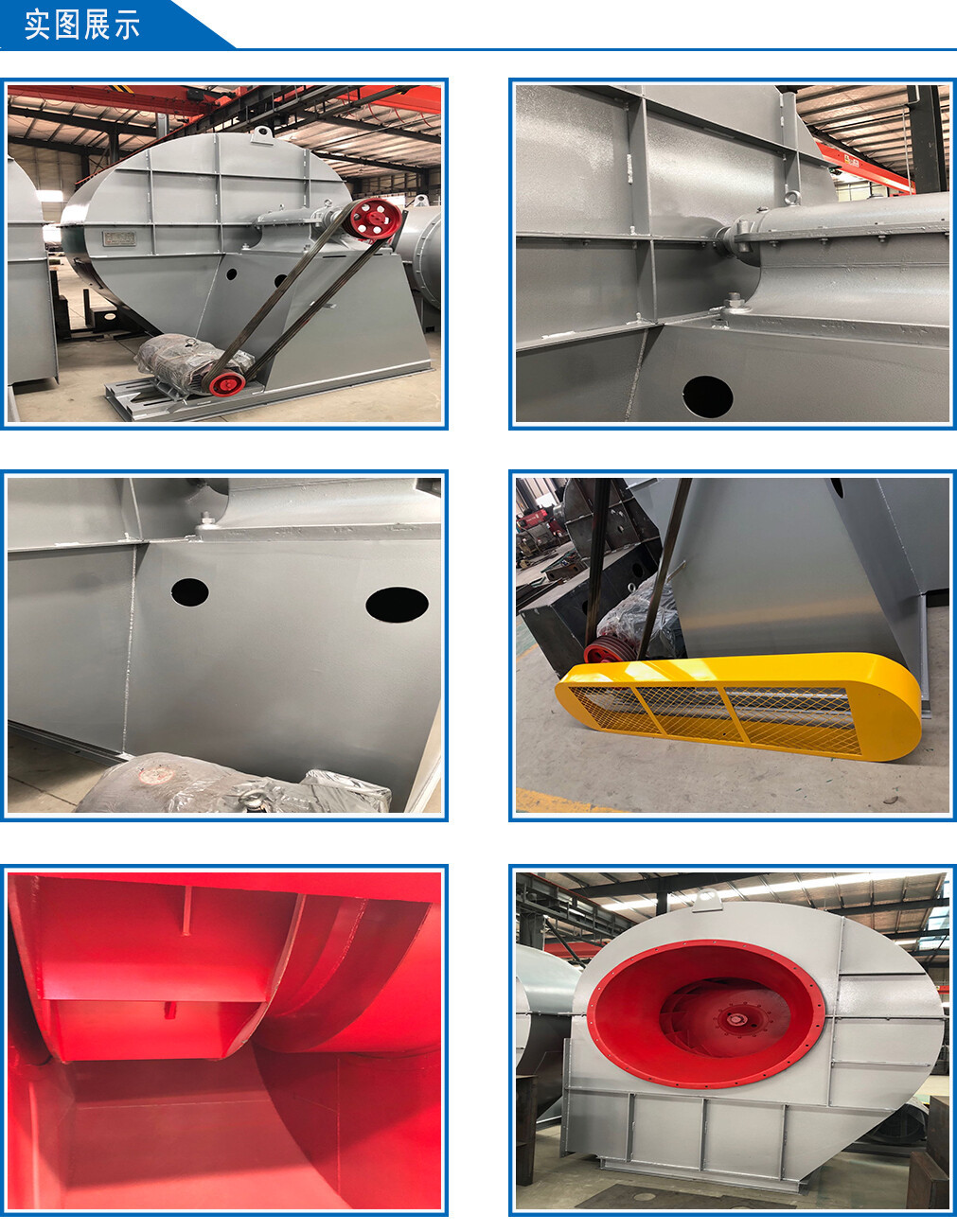

2. Structural Features
2.1 Core Components
- Impeller: Made of high-quality carbon steel or stainless steel (optional for corrosive environments), the impeller undergoes precision dynamic balancing to minimize vibration and ensure long-term stable operation. Its backward-curved blade design enhances air pressure generation and energy efficiency.
- Casing: Adopts a spiral volute structure, which efficiently converts the kinetic energy of airflow into static pressure, reducing energy loss. The casing is designed for easy disassembly, facilitating maintenance and part replacement.
- Motor: Equipped with Y-series three-phase asynchronous motors (or customized for special voltages/frequencies). The motor is directly connected to the impeller (direct-drive structure) to eliminate transmission losses, improving overall fan efficiency.
- Air Inlet/Outlet: The air inlet is designed as a convergent nozzle, ensuring smooth airflow entry and reducing turbulence. The outlet flange is standardized, allowing easy connection to duct systems.
2.2 Design Advantages
- Low Noise: The optimized impeller and casing structure, combined with a high-precision motor, effectively reduce operating noise (typically 75-85 dB(A) at 1m distance), meeting industrial noise control requirements.
- Corrosion Resistance (Optional): For applications involving corrosive gases (e.g., chemical plants, electroplating workshops), fans can be customized with stainless steel (304/316L) casings and impellers, extending service life in harsh environments.
3. Performance Parameters
4. Application Fields
- Industrial Production: Used for ventilation, dust removal, and gas transportation in factories (e.g., steel mills, foundries, cement plants). The high static pressure of the 9-19 series is particularly suitable for long-distance duct systems or high-resistance dust removal equipment.
- Chemical & Pharmaceutical Industry: Applied in corrosive gas extraction (e.g., acid mist, solvent vapor) when equipped with anti-corrosion materials. The 9-29 series is often used for general ventilation in clean workshops due to its balanced performance.
- Building Ventilation: Used in high-rise buildings, underground garages, and large shopping malls for exhaust and fresh air supply. The compact structure allows easy installation in limited spaces.
- Power & Energy Sector: Assists in cooling electrical equipment (e.g., generators, transformers) or transporting flue gas in small-scale power plants.
5. Installation & Maintenance Tips
5.1 Installation Notes
- Ensure the fan base is level and firmly fixed to avoid vibration during operation.
- Align the air inlet/outlet with the duct system correctly; use flexible connectors to reduce vibration transmission between the fan and ducts.
- Check the rotation direction of the impeller before startup (should match the direction indicated on the fan casing) to prevent reverse operation, which may damage the motor or reduce performance.
5.2 Maintenance Recommendations
- Conduct regular inspections (monthly for general use, weekly for heavy-duty use) of the impeller, motor, and bearings. Clean dust and debris on the impeller to avoid unbalanced operation.
- Replace bearing lubricating oil every 6 months (or as per the motor manual) to ensure smooth rotation.
- For fans in corrosive environments, inspect the casing and impeller for corrosion regularly; repaint or replace parts if necessary to prevent structural damage.
- Shut down the fan immediately if abnormal noise, vibration, or overheating occurs, and troubleshoot before restarting.
6. Conclusion
The 9-19 and 9-29 centrifugal fans are reliable, efficient, and versatile ventilation solutions, catering to diverse high-pressure ventilation needs across industries. With their robust design, customizable options, and easy maintenance, they not only improve workplace air quality and production efficiency but also reduce long-term operational costs. Whether for heavy-duty industrial applications or general commercial ventilation, these fan series provide consistent performance and durability.
