Keruite OEM/ODM Custom AHU with Primary/Medium/HEPA Filters, Cooling & Heating

Time : 18/04/2026

Product Description

Application

KeRuiTe Factory Central Air Handling Unit (AHU)with air volume ranging from 5,000 m³/h to 200,000 m³/his widely used in:

Hotels
Gyms
Exhibition centers
Office buildings
Subways
Airports
Other general air‑conditioning system projects

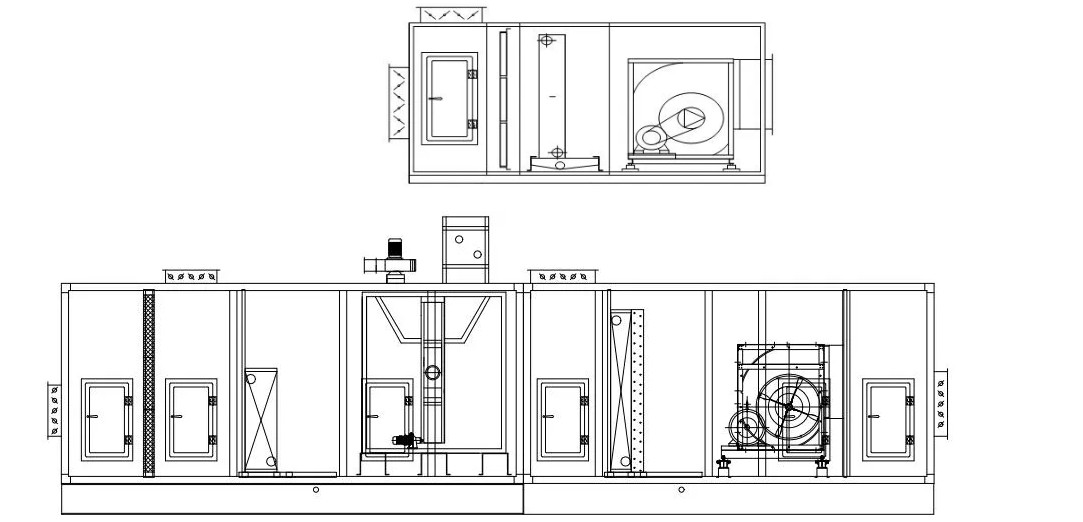

Outline Pictures

Technical Parameters

Model	Modulus	Rated Air Volume (m³/h)	Length (mm)	Width	Height	Fresh/return air mixing & air outlet section	Plate filter section	Bag filter	Pleated filter section	Air distribution control section	Cooling coil 1R‑6R	Cooling coil 8R‑12R	Steam & hot water heating section	Humidification section	Middle section
ZK2.5	09 06	2500	600	100	500	400	1200	600	800	300	600	600	900	900(200)	1100(225)
ZK04	12 06	4000	600	100	500	400	1200	600	800	300	600	600	900	1100(225)	1100(250)
ZK04	09 09	4000	600	100	500	400	1200	600	800	300	600	600	900	1100(250)	1200(280)
ZK06	12 09	6000	600	100	500	400	1200	600	800	300	600	600	900	900(280)	900(315)
ZK08	15 09	8000	600	100	500	400	1200	600	800	300	600	600	900	900(315)	900(355)
ZK09	12 12	9000	600	100	500	400	1200	600	800	300	600	600	900	900(315)	1400(355)
ZK12	15 12	12000	600	100	500	400	1200	600	800	300	600	600	900	900(355)	1000(400)
ZK15	18 12	15000	800	100	500	400	1200	600	800	300	600	600	900	1000(400)	1100(450)
ZK17	21 12	17000	800	100	500	400	1200	600	800	300	600	600	900	1100(450)	1200(500)
ZK15	15 15	15000	800	100	500	400	1200	600	800	300	600	600	900	1700(450)	1800(500)
ZK19	18 15	19000	800	100	500	400	1200	600	800	300	600	600	900	1200(500)	2000(560)
ZK22	21 15	22000	800	100	500	400	1200	600	800	300	600	600	900	1200(500)	1300(560)
ZK26	24 15	26000	800	100	500	400	1200	600	800	300	600	600	900	1300(560)	1500(630)
ZK25	19 19	25000	800	100	500	400	1200	800	900	300	600	600	900	1300(560)	2300(630)
ZK28	21 19	28000	800	100	500	400	1200	800	900	300	600	600	900	2300(630)	2400(710)
ZK32	24 19	32000	800	100	500	400	1200	800	900	300	600	600	900	1500(630)	1700(710)
ZK37	27 19	37000	800	100	500	400	1200	800	900	300	600	600	900	1700(710)	1800(800)
ZK35	22 22	35000	1000	100	500	400	1500	800	900	300	600	600	900	2400(710)	2600(800)
ZK38	24 22	38000	1000	100	500	400	1500	800	900	300	600	600	900	1700(710)	2600(800)
ZK44	27 22	44000	1000	100	500	400	1500	800	900	300	600	600	900	1800(800)	2100(900)
ZK49	30 22	49000	1000	100	500	400	1500	800	900	300	600	600	900	1800(800)	2100(900)
ZK45	25 25	45000	1000	100	500	400	1500	800	900	300	600	600	900	1800(800)	2700(900)
ZK50	27 25	50000	1000	100	500	400	1500	800	900	300	600	600	900	1800(800)	2100(800)
ZK55	30 25	55000	1000	100	500	400	1500	800	900	300	600	600	900	2100(900)	2200(1000)
ZK60	33 25	60000	1000	100	500	400	1500	800	900	300	600	600	900	2100(900)	2200(1000)
ZK67	36 25	67000	1200	100	500	400	1500	800	900	300	600	600	900	2100(900)	2200(1000)
ZK77	36 28	77000	1200	100	500	400	1500	800	900	300	600	600	900	2400(800×2)	—
ZK85	39 28	85000	1200	100	500	400	1500	800	900	300	600	600	900	2400(800×2)	—
ZK105	45 30	105000	1200	100	500	400	1500	1000	1200	600	600	600	900	2400(800×2)	—
ZK110	48 30	110000	1200	100	500	400	1500	1000	1200	600	600	600	900	2700(900×2)	—
ZK115	45 33	115000	1200	100	500	400	1800	1000	1200	600	600	600	900	2700(900×2)	—
ZK125	48 33	125000	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000×2)	—
ZK120	45 35	120000	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000×2)	—
ZK130	48 35	130000	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000×2)	—
ZK140	51 35	140000	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000×2)	—
ZK150	54 35	150000	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000×2)	—
ZK160	57 36	160000	1200	100	500	400	1800	1000	1200	600	600	600	900	3550(1120×2)	—
ZK170	60 36	170000	1200	100	500	400	1800	1000	1200	600	600	600	900	3750(1250×2)	—

Notes

The length of functional sections such as heat recovery section and dehumidification section shall be determined according to actual working conditions. Activated carbon section: standard length 900 mm.
Dimensions of the mixing section and air outlet section are standard. Custom sizes and positions shall be confirmed case by case.
Length of the humidification section shall be adjusted according to specific requirements and humidifier type.
If a cellulose pad humidifier is installed after the condenser, no additional functional section is required. If installed independently, a six‑mode space is needed.
A middle section shall be added before the filter section, cooling coil, heating section and silencer section for convenient maintenance.
Data in this table is for reference only. Actual design may vary. For special requirements, please contact HuiKai.
Features The unit is equipped with high‑quality domestic or imported fans, featuring high efficiency, low noise and attractive appearance. Motors are well‑known domestic brands with long service life and low energy consumption. Bearings are NSK standard. Detachable modular structure for easy installation, transportation and on‑site assembly. Polyurethane foam‑sprayed panels provide excellent thermal insulation, corrosion resistance and aesthetic appearance. Condensate tray can be made of galvanized steel or stainless steel based on customer needs, effectively preventing condensate leakage and corrosion. Unit design, manufacturing and inspection comply with: GB/T 14294‑1993 Combined Air Conditioning Units GB 10891‑1989 Safety Requirements for Air Handling Units Modular design with 100 mm modulus. Overall dimensions can be defined by modulus, enabling quick and accurate dimensioning for various models.
